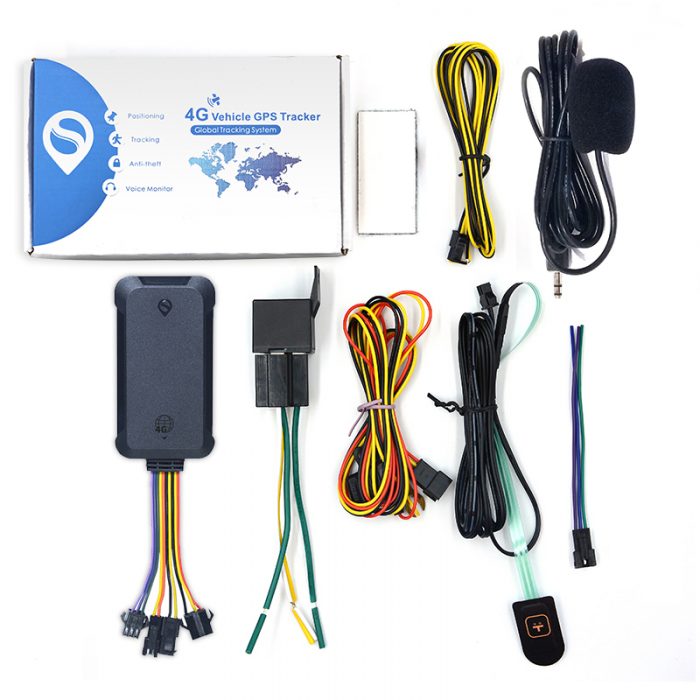

S5L - 4G Vehicle GPS Tracker for Logistic Transportation with Fuel/Temparature Monitoring

S5L is a 4G LTE  CAT4 GPS vehicle tracker for logistic transportation with real-time positioning. This S5L fleet GPS tracker supports GPS/BDS/GLONASS positioning modes which can realize functions such as SOS emergency call, disassemble alarm, displacement alarm, electronic fences, remotely cut-off petrol/electricity, OTA, etc.

The S5L 4G GPS tracker with remote fuel/temperature monitoring is very easy to install and fix. The product has a built-in 150mAh rechargeable battery. It can continue to send positioning data to the platform terminal after power off; dismantling the device can realize functions such as disassembly alarm.

S5L comes with a built-in fuel quantity and temperature sensor, temperature loss or oil leakage will be reported immediately, suitable for logistics, truck/fleet management, and so on.

Feature:

  • GPS/BDS/GLONASS positioning modes, GPS+AGPS dual auxiliary positioning
  • Remotely cut-off petrol/electricity and OTA
  • SOS emergency call
  • Disassemble alarm
  • Geo-fence alarm
  • Movement alarm
  • ACC detection and alarm
  • Rapid acceleration/deceleration /collision alarm
  • Power off alarm, low battery alarm

Product Parameters

Additional information

Sistema de posicionamiento

GPS/BDS/GLONASS

Red de comunicación

LTE Cat 1/GSM

Frecuencia

S5L-EU:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: 900/1800MHz

S5L-LA:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE-TDD: B38/B40/B41
GSM: 850/900/1800/1900MHz

Arranque en frío

<35s

Arranque en caliente

<2s

Precisión de ubicación

<10 metros

Voltaje de entrada

9-90V

Temperatura operativa

-30℃~+75℃

Peso

60g

Dimensiones

L83.0mm*W46.0mm*H16.0mm

Análisis de comportamiento de conducción (Opcional)

Aceleración brusca, frenado brusco, curvas agresivas, colisión

Detección de encendido

Detección de ACC

Product Functions

Fuel Alarm

Real-time monitoring of the fuel tank conditions, once abnormal fuel consumption occurs, an alarm will be sent immediately.

ACC Detection

Constantly detect the ACC/ignition status of the vehicle.

Remote Cut Off (Fuel/Power)

Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay

Multiple Alerts

Instant alerts for atypical events such as abnormal vibration, SOS, speeding, power-off, geo-fence in/out, etc.

Remote Voice Listening

The inconspicuous mic allows for remote audio monitoring of the environment around the device.

Fuel/Temperature Sensor (Optional)

Optional peripherals to monitor fuel level or temperature add visibility to your operations and help save money.

Product Application

Installation Tutorial
